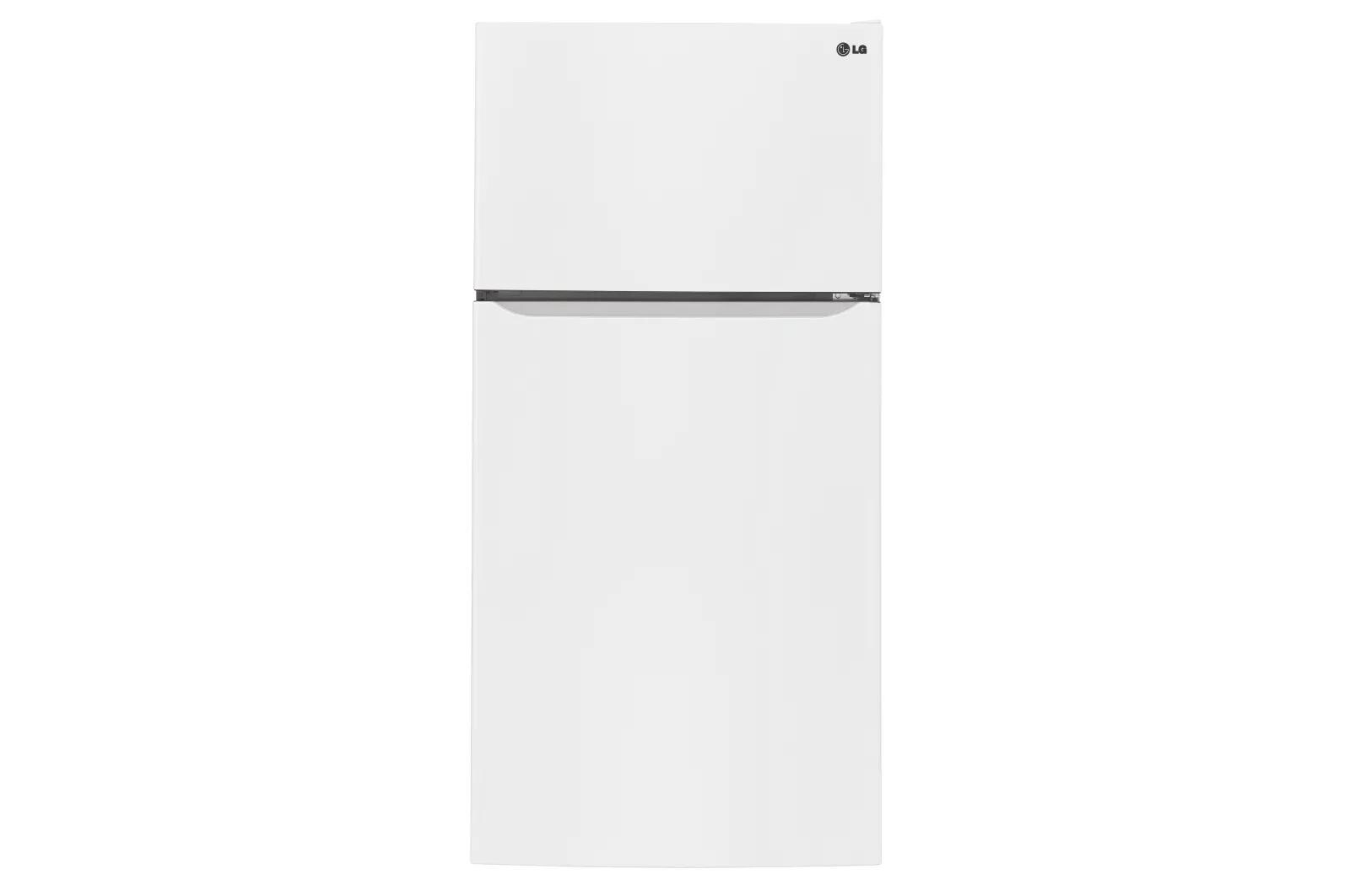

LG 24 cu. ft. Top Mount Refrigerator
Model: LTCS24223W
Color : Smooth White
Depth : Standard Depth
Replaced By
Key Features
Great Space in Style
Space to Keep it Fresh
Great Light
Sophistication at Every Turn
Cold as ice.
Fresher is better
Qualifications
Measure First, Order Right.
Description
Available from Testing Website, serving customers throughout Charlotte.
Features
Great Space in Style
Space to Keep it Fresh
Great Light
Sophistication at Every Turn
Cold as ice.
Fresher is better
Qualifications
Measure First, Order Right.
24 cu. ft. Capacity
Contoured Doors with Pocket Handles
Full Width Pantry Drawer
Factory Installed Ice Maker
Rated Energy Star Most Efficient 2020
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 39.8 in. |
| Shipping Height | 76.43 in. |
| Shipping Length | 43.14 in. |
| Shipping Weight | 264 lbs. |
| Total of Shipping Weight | 264 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 50.45 ft³ |
| Dimensional Weight | 627.23 lbs. |
| Total of Cubes | 50.45 ft³ |
| Total of Dimensional Weight | 627.23 lbs. |
FREEZER
| Freezer Light | Premium LED |
| Ice Bin | Yes |
| Shelf Construction | Tempered Glass |
| Auto Defrost | Yes |
| No. of Shelves | 1 |
| No. of Door Bins/Shelves | 2 |
| Ice Maker | Yes |
MATERIALS & FINISHES
| Available Colors | Smooth White (SW), Smooth Black (SB), Stainless Steel (ST) |
| Back | Flush & Metal cover over mechanical parts |
| Contour Door | Yes |
| Surface | Coated Metal, Stainless Steel |
| Reversible Door | yes |
| Blowing Agent | Cyclopentane - Low Global Warming Potential, and Zero Ozone Depletion Potential Blowing Agent |
REFRIGERATOR DOOR
| Tall Item Retainer | Yes |
| Dairy BIn | Yes |
| No. of Door Bins | 3 (2 Gallon Sized) |
CAPACITY
| Freezer | 6.2 cu. ft. |
| Total | 23.8 cu. ft. |
| Refrigerator | 17.60 cu. ft. |
FEATURES
| ENERGY STAR® Qualified | Yes (501 kWh/Year) |
| Temperature Sensors | Yes |
| LoDecibel™ Operation | Yes |
| Freezer Door Type | Top Swing Door |
| Temperature Controls | Digital |
| Display | Internal Membrane / Green LED |
| Energy Rating | ENERGY STAR® Qualified |
| Linear Compressor | Inverter |
WARRANTY
| Limited Warranty | 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only) |
| UPC | 048231786997 |
REFRIGERATOR
| Refrigerator Light | Premium LED |
| No. of Shelves | 2 Full |
| Crisper Bins | 2-Humidity Crispers |
| Full Width Pantry Drawer | Yes |
| Dairy Corner/Bin | 1 |
| Multi-Air Flow Cooling | Yes |
| Shelf Construction | Tempered Glass |
| Gallon Storage | 2 Gallons |
| Daily Ice Production | 3.7 lbs |
| Full Snack Tray/2 Bottle Guides | Yes |
| Ice Storage Capacity | 5.5 lbs |
| Temperature Sensors | 4 |
| Compressor Type | Inverter |
SUMMARY
| ENERGY STAR® Qualified | Yes |
| Total Capacity | 23.8 |
| Standard Depth | Yes |
| SmartDiagnosis™ | Yes |
COOLING
| Refrigerant | R600a: Low Global Warming Potential, Zero Ozone Depletion Potential and More Energy Efficient Refrigerant than R134a |
RATINGS
| Energy Consumption | 438kWh |
| Amps | 20 Amp |
| Requirements | 120V, 60Hz, 15 Amp |
Dimensions & Weight
| Width | 32 in. |
| Height | 71.43 in. |
| Length | 38.14 in. |
| Weight | 224 lbs. |
| Depth (Total with Door Open) | 63" |
| Depth Including Door | 33 3/8" |
| Height to Top of Case | 67 7/8" |
| Width (Door Open 90° with Handle) | 34 3/4" |
| Carton Dimensions (WxHxD) | 34 4/5" x 71 3/7" x 38 1/7" |
| Installation Clearance | 2" |
| Depth without Door | 29" |
| Height to Top of Door Hinge | 70 1/4" |
| Width (Door Open 90° without Handle) | 34 3/4" |
