This product has been discontinued by the manufacture and is no longer available.

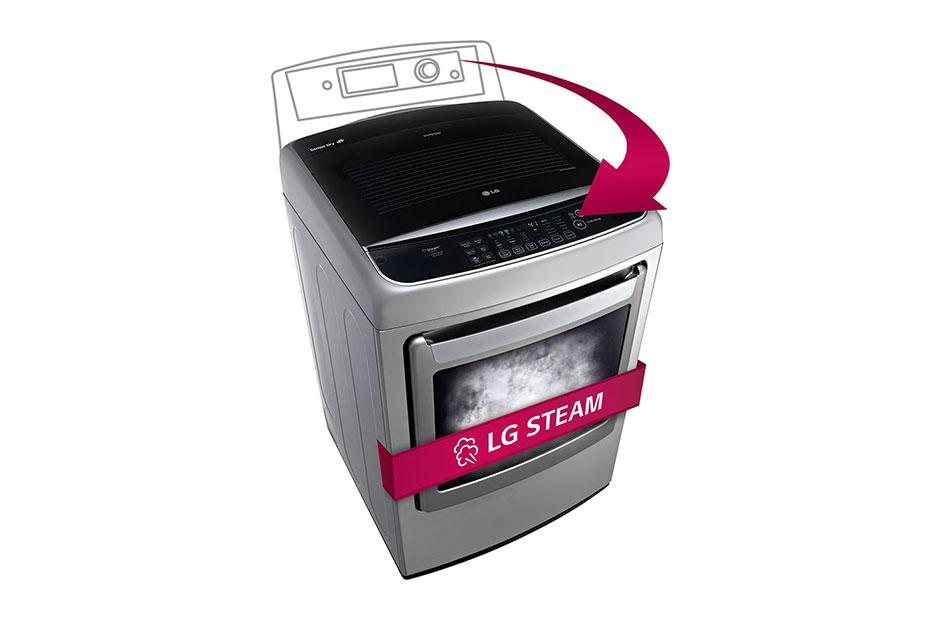

LG 7.3 cu.ft. Ultra Large Capacity High Efficiency Front Control SteamDryer™ with SteamFresh™
Model: DLEY1701V
Features
Specifications
Features
Big time saver
The quick fix
Get wise
ENERGY STAR® Qualified
Specifications
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 45.16 in. |
| Shipping Length | 33.38 in. |
| Shipping Weight | 173.7 lbs. |
| Total of Shipping Weight | 173.7 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.81 ft³ |
| Dimensional Weight | 221.35 lbs. |
| Total of Cubes | 17.81 ft³ |
| Total of Dimensional Weight | 221.35 lbs. |
SUMMARY
| Dryer Type | Electric |
| SteamDryer™ | Yes |
CAPACITY
| Capacity | 7.3 cu. ft. |
APPEARANCE
| Design Look | Front Control |
| Front Electronic Control Panel with LED Display | Yes |
| Touch Buttons | Yes |
ENERGY
| ENERGY STAR® Qualified | Yes |
DRYING PROGRAMS
| No. of Programs | 12 |
| Programs (Sensor Dry) | Cotton/Normal, Perm. Press/Casual, Heavy Duty, Small Load, Bulky/Bedding, Anti-Bacterial, Towels, Delicates, SteamFresh™, Wrinkle Free |
| Programs (Manual Dry) | Speed Dry, Air Dry |
| No. of Options | 8 |
| Options | More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal, Rack Dry |
| Temperature Settings | High, Medium High, Medium, Low, Ultra Low |
| Drying Levels | Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry |
| Manual Dry Times | 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time |
FABRIC CARE FEATURES
| SteamFresh™ Cycle | Yes |
| Wrinkle Free Cycle | Yes |
| Sensor Dry | Yes |
| Precise Temperature Control with Variable Heater | Yes |
CONVENIENCE FEATURES
| LoDecibel™ Quiet Operation | Yes |
| SmartDiagnosis™ | Yes |
| FlowSense™ Duct Clogging Indicator | Yes |
| Anti-Bacterial Cycle | Yes |
| Wrinkle Care Option | Yes |
| Remaining Time Display/Status Indicator(s) | Yes |
| End of Cycle Signal | Yes |
| Child Lock | Yes |
| Drum Light | Yes |
| Reversible Door | Yes |
| Leveling Legs | 4 Adjustable Legs |
| Venting Option | Electric: 4 Way Venting / Gas: 3 Way Venting |
| Drying Rack | Yes |
| 3 Minute Installation Check | Yes |
MATERIALS AND FINISHES
| NeveRust™ Stainless Steel Drum | Yes |
| Cabinet | Painted Steel |
| Control Panel | Plastic |
| Top Cover | Plastic |
| Diamond Glass Door | Transparent (White), Dark Gray Tint (Graphite Steel) |
| Available Colors | White (W), Graphite Steel (V) |
POWER SOURCE
| Ratings | CSA Listed |
| Electrical Requirements | 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric) |
| Type | Gas/Electric |
OPTIONS
| LP Conversion Kit | 4948EL4002B |
| Side Venting Kit | 383EEL9001B |
Warranty/UPC
| Limited Warranty | 1 Year Parts and Labor |
| UPC | 048231013642 |
Dimensions & Weight
| Width | 27 in. |
| Height | 40.16 in. |
| Length | 28.38 in. |
| Weight | 133.7 lbs. |
| Product (WxHxD) | 27" x 40 5/32" x 28 3/8" (50 1/4" D with door open) |
| Carton (WxHxD) | 29 1/2" x 43 7/10" x 31 1/4" |
